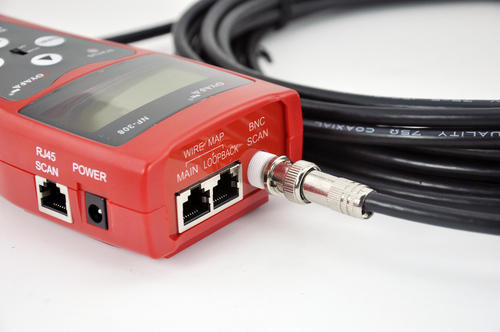

Drakat Wire fault locator DK-308, RJ-45, RJ-11, Coaxial, USB Cable Tester and Wire Tracer

  • Trace 5E, 6E, telephone, Coax, USB and other cable.
  • Check wire error such as opens, shorts, jumper wire, reverse connection.
  • Measure length and verify the distance of open short circuit of network cable.
  • Dynamically calibrate cable length makes length makes length measurement as accurate as 98%
  • Automatically time-delay shut off and backlight display function.

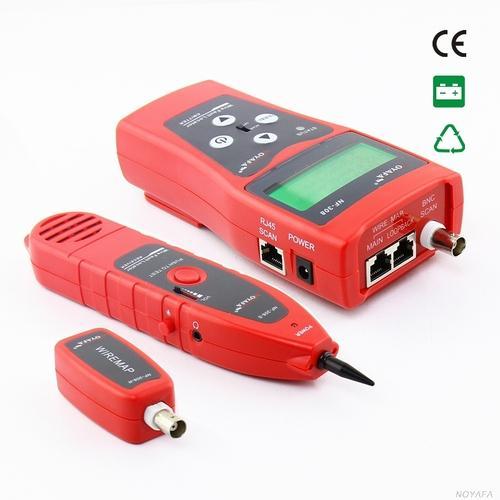

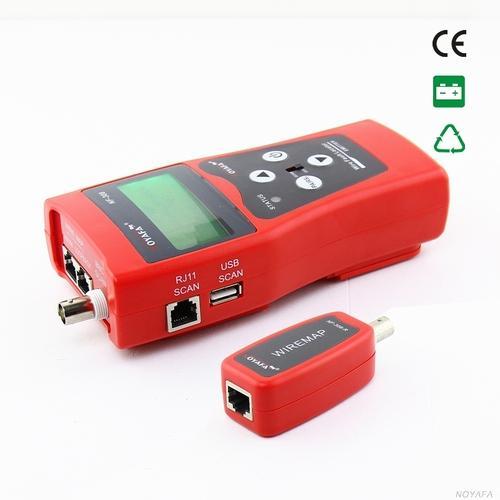

Drakat DK-308 New Lan Tel USB Coaxial Cable Tester and Wire Tracer.



One person enough to complete cable continuity check. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
Locate the wiring or connection error.
Measure cable length and determine the distance of open circuit and short circuit.
Simple and easy use. Big screen to display test result clear.
Measure length and pair with or without far-end recognizer.
Far-end recognizer with prompting voice.
Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
Single board computer software watchdog design and reliable operation.

Technical Parameters:-

Product Name : Cable Tester & Tracker DK-308
Main Function : Tracing and Testing cable
Tracing Cable Type :BNC, USB, RJ45, RJ11 cable and Metal wire
Testing Cable Type : Coaxial & Cat.5/5e/5 UTP STP network cable, open circuit, short circuit, jumper wire, reverse connection

Measuring Twisted Pair :
Scope: 1 to 305 meter (3 to 1000 feet)
Calibration Accuracy: 97%, ± 0.5M or ± 1.5 ft (cable > 5 meters)
Shipment Accuracy: 95%, ± 0.5 M or ±1.5 ft (AMP, AT&T Cat5 cable)

Length Calibration :Calibration factor can be set with a given length cable, > 5 meters. Display: M or ft.
LCD display :4 x 16 character big screen, valid visual field 6.1cm x 2.5 cm (2.4 in × 1.0 in)
Auto-Off Delay Time : 30 minutes
Low Battery Indication :LED display, backlight
Operating Temperature : -10°C to 60°C

Dimensions :

Main tester : 17.5×8.0×4.2 cm
Receiver : 21.8×4.6×2.9 cm
Remote identifier : 8.4×3.4×2.7 cm

Note : Battery not include.
