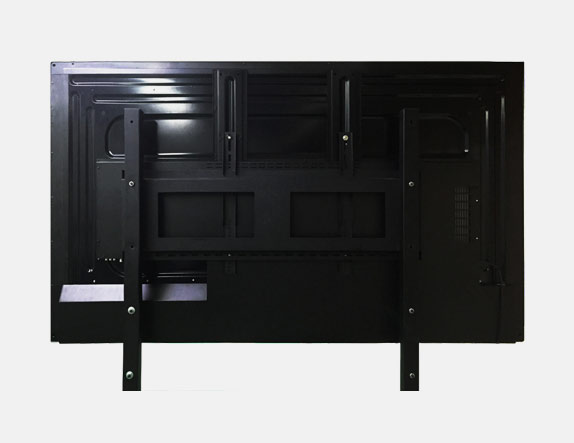

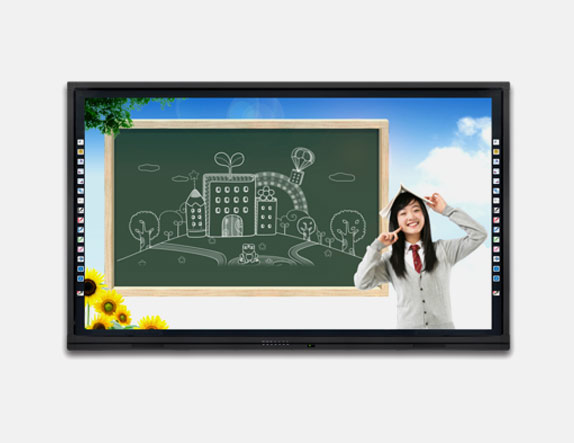

Interactive Flat panel SG-TM-65SN

Description Parameter
Model Size 65″
Resalution 1920×1080 or up
Brightness 350cd/m2
Contrast 4000: 1,
Touch Sensor IR(Infrared Technology
Color 10 bit
View Angle 178  o
Panel Respose <17ms
Inputs HDMI2.0*1, HDMI 4*1. VGA-IN*1, VGA Adio-in*1 YPBPR*1, AV*1
USB.2.0*2,USB3.0*2, RJ-45*1, TF Card*1 Touch USB*1(A-B)
Outputs AV-Out*1, Earphone*1, SPDIF*1
Voltage Range AC (100-240) V-50/60Hz
Power Range Standby Power <1W, Rated Power <230W
Android Specification Android 5.0 Dual Cortex A53 Chipset 1.5Ghz DDR3 2GB RAM, Wi-Fi Built-In 2.4G/5g (Optional)
(Optional) Wireless ban: 802.11 b/g/n, 8 GB Storage.
Size 1547 x 936 x 93mm
Net Weight 68 kg
Gross Weight 84 Kg
Touch Parameter
Writing Mode Finger Writing Pen or any non- transparent Object
Positioning Accuracy <2mm
Positioning Resolution 4096*4096/16384*16384, 32768*32768
Writing Response time <8ms
Cursor Speed >180 dot/sec
Communication port USB
Operating System Windows/Linux/Android/Mac
PC Response System Auto Response
Working Temperature 0℃- 40℃
