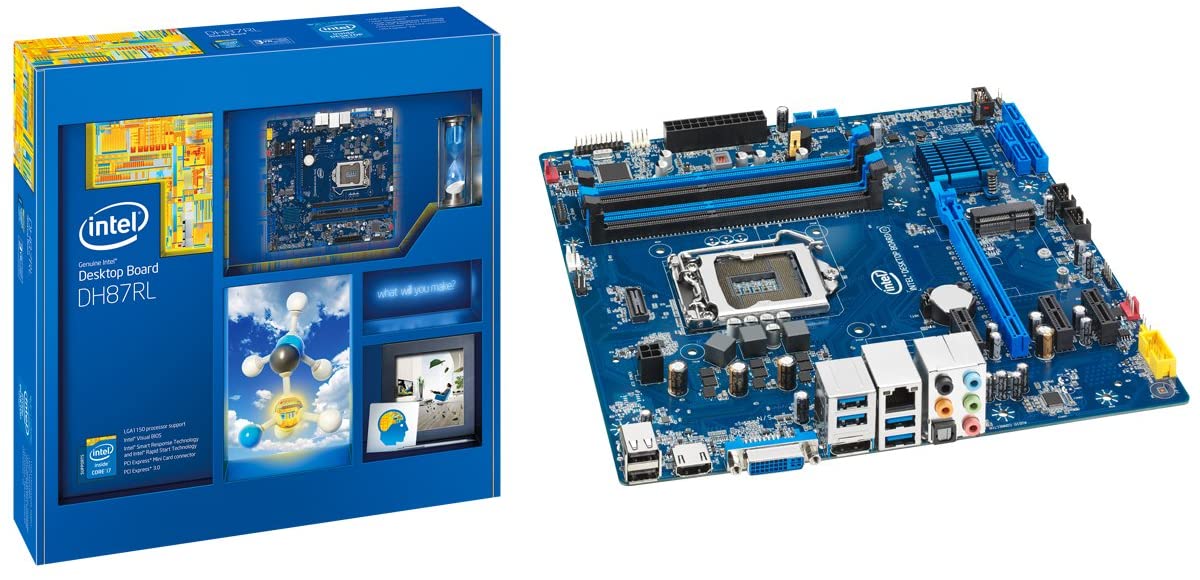

Intel® Desktop Mother Board DH87RL

Brand Intel
CPU Socket LGA 1150
RAM Memory Technology DDR3
Memory Storage Capacity 32 GB
Graphics Card Interface PCI, PCI-E

About this item

  • Micro-ATX Form Factor
  • Intel H87 Chipset
  • Maximum 32 GB DDR3
  • LGA 1150 Socket Type
  • 4 Memory Slots


Optimize your computer’s speed by upgrading your PC with the Intel DH87RL Motherboard – designed to fit your unique needs.

This desktop board is compatible with the Intel Core i7, i5, i3 and Intel Celeron processors in an LGA 1150 socket. The board features PCI Express, Mini Card connector, PCI Express 3.0 and Dual-channel DDR3 1600 with 1.2V to 1.8V memory voltage control for maximum Dual In-line Memory Module (DIMM) compatibility. Supporting the DDR3 1600/1333 MHz DIMMs of up to 32 GB of system memory is its four 240-pin DDR3 SDRAM DIMM sockets. The board also features Intel’s Turbo Boost and Hyper-Threading, and 64 Architecture technologies for superior performance and scalability. Efficient allocation of cache is achieved through the 8-MB Shared Intel Smart Cache.

With advanced visual BIOS features such as intelligent search, file explorer, profile management and favourites, configuring the system according to your computing needs with a complete graphical interface is fast and simple. Intel Express BIOS update support gives you fast booting capacity, so that you can access the PC instantly after switching it on. The graphics is controlled by DVI-I, HDMI and DisplayPort v1.2. The board utilizes Intel’s H87, Rapid Storage Technology, Smart Response Technology, Rapid Start Technology and Smart Connect Technology chipsets. The Intel HD Audio in this desktop board features a 10-channel audio subsystem with five stack analog audio output configuration.

This Intel 4th Generation motherboard contains six USB 3.0 ports, eight USB 2.0 ports and six serial ATA 6.0 Gab/s ports for peripheral interface. Its expansion capabilities include three PCI Express 2.0 x1 slots and one full-size/half-size PCle Mini Card slot with support for mSATA solid-state drive. A Gigabit Ethernet controller is used for LAN support.

Developed according to the current market trends, the micro-ATX form factor not only reduces the size of the motherboard, but is also a low-cost solution for the current PC requirements. Built by utilizing the most advanced technologies, the Intel DH87RL Motherboard is an effective solution for your personal computing needs.
