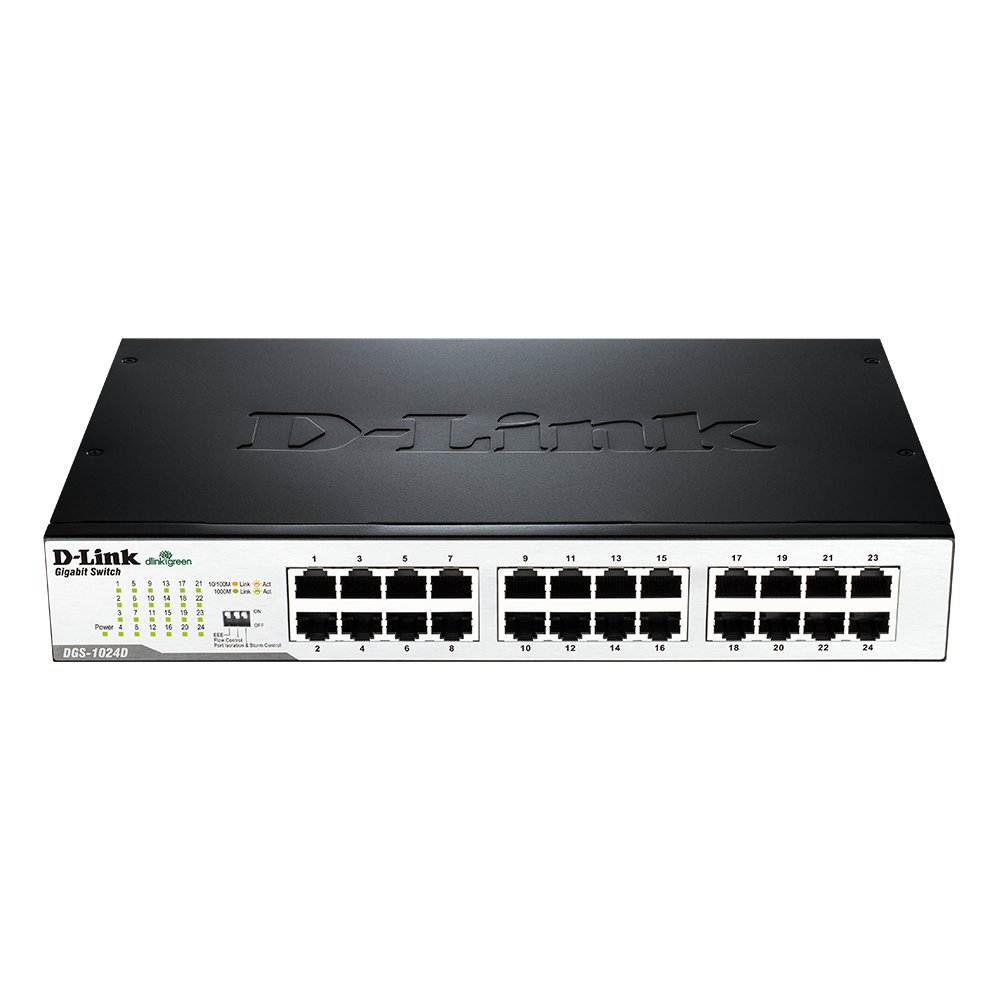

D-Link DGS-1024C 24-Port Gigabit Unmanaged Desktop/Rackmount Switch

About this item
  • D-Link DGS-1024C 24 Port 100-1000Mbps Switch
  • 48Gbps Switching Capacity
  • Desktop or Rack Mountable Design
  • Non-blocking Architecture
  • Power Inputs: 100 to 240V AC Input ; Power Consumption: Standby: 6.5 watts, Maximum: 13.5 watts ; Operating Temperature: 32 to 104 °F (0 to 40 °C)
Categories: ,

Product description

The 24 port gigabit switch was designed with the environment in mind, and is compliant with energy star level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters.

From the manufacturer


DGS-1024D: 24-Port Gigabit Unmanaged Desktop/Rackmount Switch

Gigabit Connection for Home and SOHO

Gigabit Connection for Home and SOHO

The DGS-1024D switch bring the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for 10Mbps standard Ethernet, 100 Mbps Fast Ethernet, or 1000Mbps Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.


D-Link Green

Product Highlights

Function Controlled DIP Switch

– EEE: Enable/Disable IEEE 802.az Energy-Efficient Ethernet

– Flow Control: Enable/Disable Flow Control

Port Isolation and Storm Control:

– Port Isolation: When enabled, ports 1 to 23 will be isolated from each other, but will still be able to communicate with port 24. Port 24 will be able to communicate with all the ports available on this switch

– Storm Control: When enabled, a broadcast storm control threshold value of 128 kbps will be applied to incoming broadcast packets on all ports

Think Green

The DGS-1024D help you conserve energy automatically through several methods. It automatically power down ports that have no link, saving substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down.

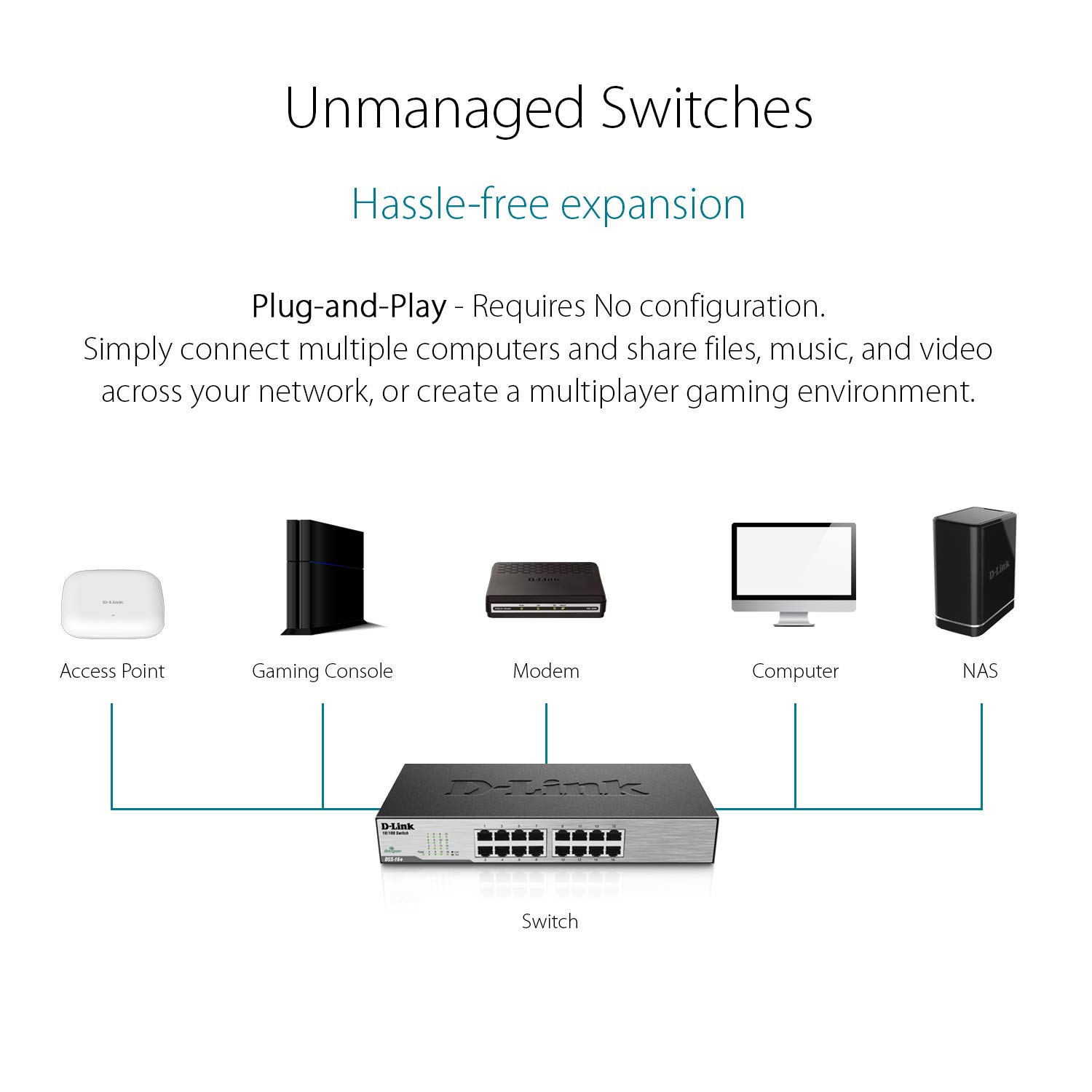

Plug and Play Installation

The DGS-1024D switch was designed for Plug-and-Play and hassle-free installation. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance. Diagnostic LEDs and cable diagnostics allow for quick detection and correction of network problems.

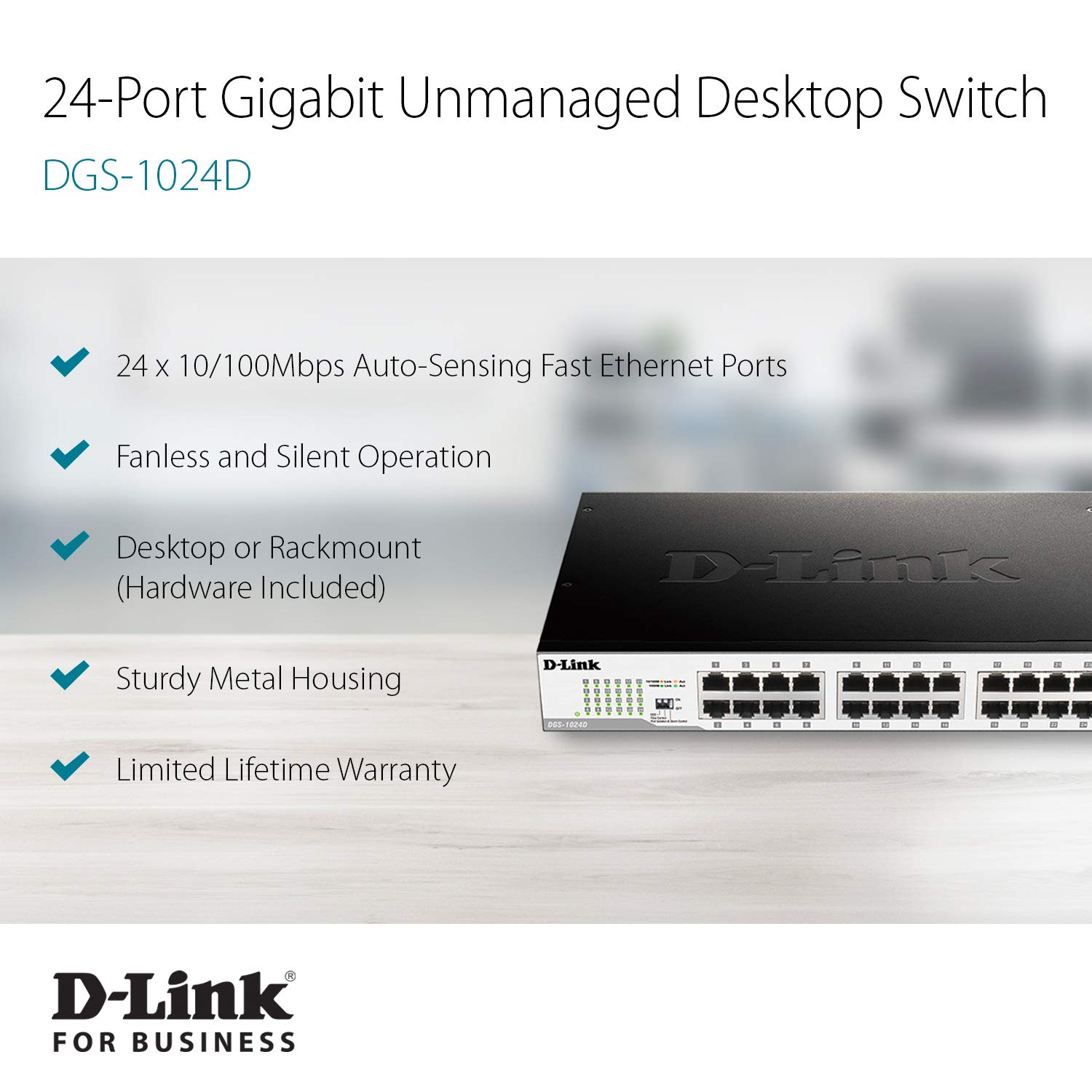

Key FeatureS

24 Gigabit Ethernet ports for fast network speeds
Desktop or rackmountable metal housing – rackmount brackets included

Fanless design for silent operation

IEEE 802.3x Flow Control

Port Isolation and Broadcast Storm Control

Auto MDI/MDI-X crossover for all ports

Full/half-duplex for Ethernet/Fast Ethernet speeds

Jumbo Frame support

Innovative D-Link Green Ethernet Technology conserves energy

Link status detection reduces power usage

802.3az EEE reduces power consumption significantly

RoHS compliant

Plug-and-play installation

Limited Lifetime Warranty

Limited Lifetime Warranty

D-Link offers a Limited Lifetime Warranty on the DGS-1024D unmanaged switch to further its commitment to product quality and long-term customer confidence.

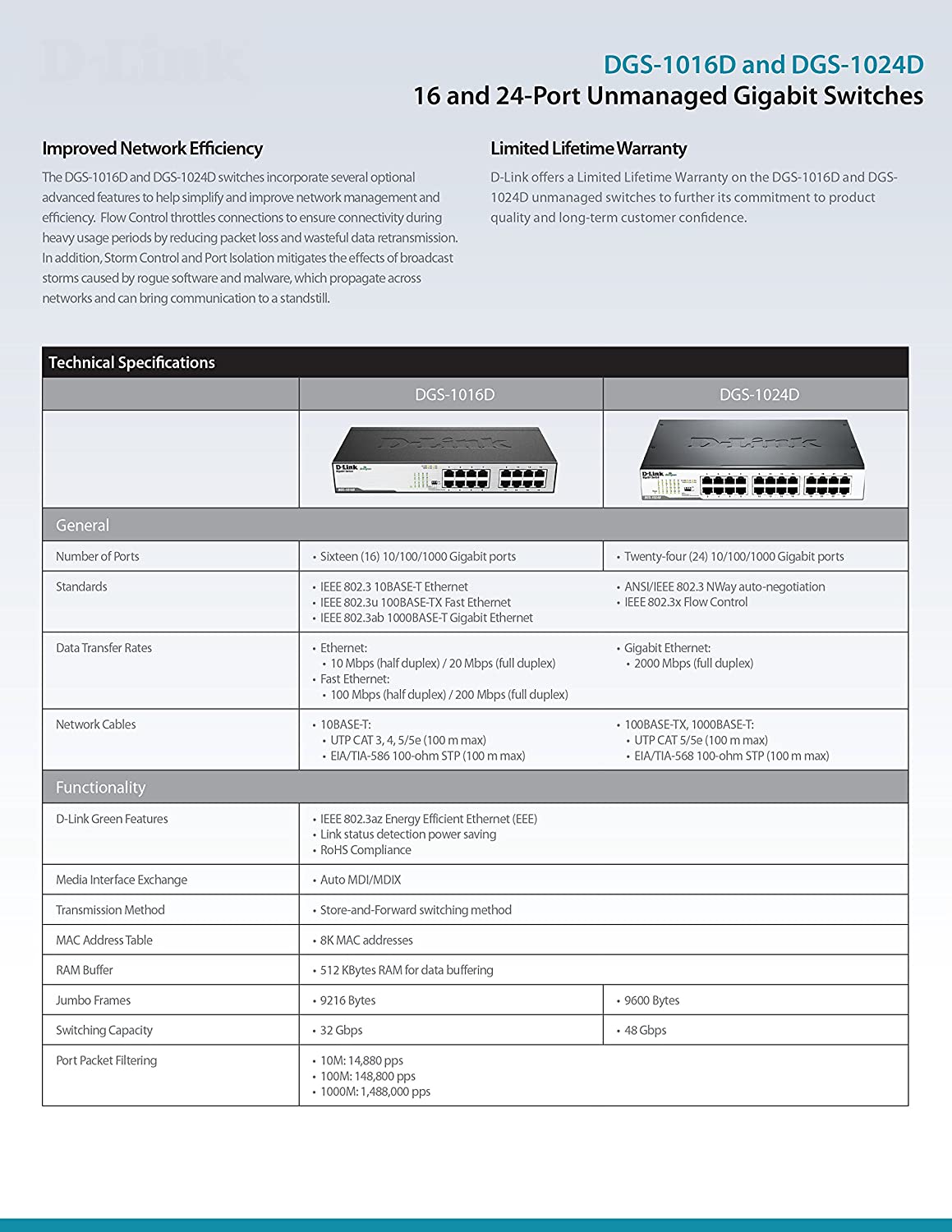

Product information

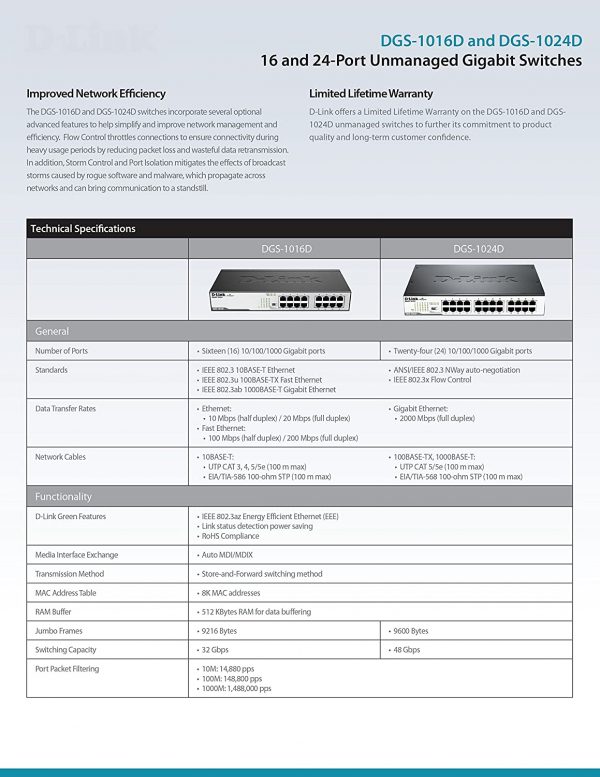

Technical Details
